球锁轴系统可以精确地定位工件,无需为夹具找正并且确保重复定位精度在±0.01mm之内
Ball Lock system can accurately locate the workpiece.It is not nacessary to make alignment for the fixture and resetting precision can be ensured within ±0.01mm.
球锁系统可将夹具板牢牢固定在基础板上,每个轴最大可提供9顿的锁紧力
Ball Lock system can firmly fix the jig plate on the floor plate with a maximum of the nine tons locking force for each axle...

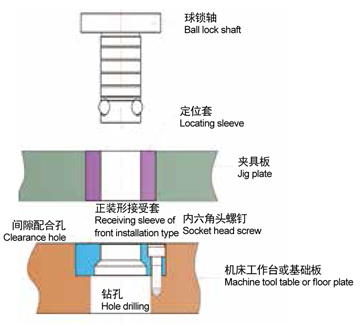

1)基础板.作为定位基准,永久固定在机器工作台上,基础板上面装有多个球锁接受套,配合不同大小的夹具板
For plate,as the positioning reference,is permanently fixed to the machine worktable.Several ball lock receiving sleevs are fitted on the floor plate to work with different sizes of jig plate.
2)夹具板,装有两个球锁定位套,与基础板上的接受套对应,通过球锁轴锁紧
Jig plate,with two ball lock locating sleeves fitted,corresponds to the receiving sleeve on the floor plate and can be locked through a ball lack shaft.
3)球锁轴,起定位和锁紧作用,通过与定位套配合,将夹具板快速、精确地固定在基础板上。有多种尺寸可供选择
Ball lock shaft,with the function of locating and locking,works with the locating sleeve and fixes the jig plate quickly and accurately to the floor plate.There are a variety of sizes can be selected.
